sierpinski

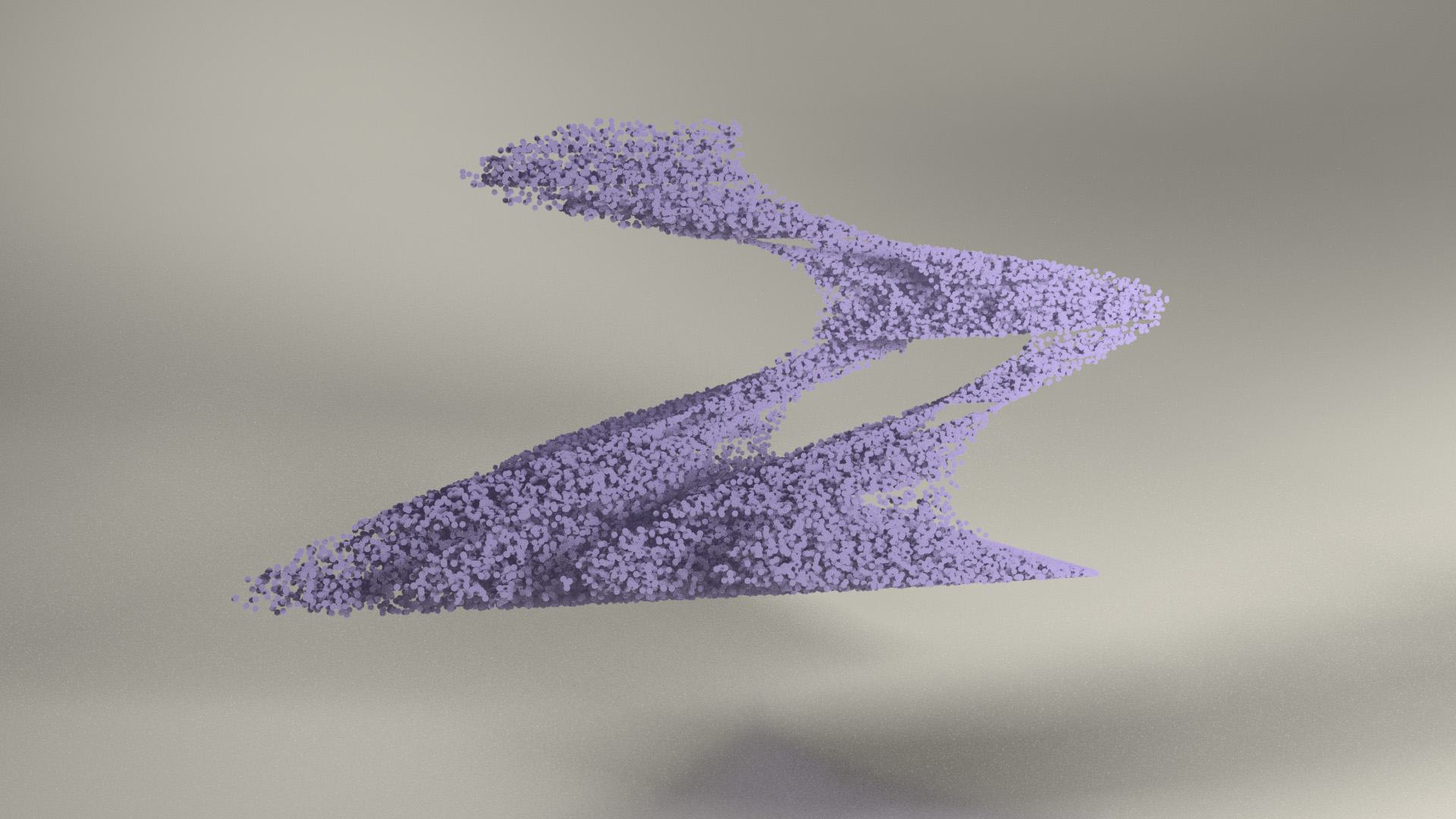

$generating a sierpinski fractal with python for maya, renderman, and arnold$

$To generate this fractal, methods were written to find the midpoint between two given points, pick one random point in a list, generate a tetrahedron, then interpolate between a seed point and a vertex and a new points until the iteration is complete. I then added a sort method for the vertices based on their y-value and moved the x-positions along a sine curve.$

import random
import math
import sys
from sierpinski_arnold import getBounds

def halfstep(p1, p2):
	# turn items to floats
	fp1 = []
	fp2 = []
	for n in p1:
		fp1.append(float(n))
	for n in p2:
		fp2.append(float(n))
	# average each point at each coord
	x = (fp1[0] + fp2[0])/2
	y = (fp1[1] + fp2[1])/2
	z = (fp1[2] + fp2[2])/2
	return [x,y,z]

#-------------------------------------------------------------

def pickpnt(pnts):
	return random.choice(pnts)

#-------------------------------------------------------------

def tetrahedron(center, size):

	#build tetrahedron around center based on size
	#lines of symmetry are size*sqrt(3)/2 for equilateral triangle
	#A pnt [center+(size*sqrt(3)/3), 0, center]
	#B pnt [center-(size*sqrt(3)/6), 0, center-(size/2)]
	#C pnt [center-(size*sqrt(3)/6), 0, center+(size/2)]
	#D pnt [0, size, 0]
	height = (size*math.sqrt(3))/2
	constant = (size*math.sqrt(3))/3
	a = [center[0]+constant, center[1], center[2]]
	b = [center[0]-(constant/2), center[1], center[2]-(size/2)]
	c = [center[0]-(constant/2), center[1], center[2]+(size/2)]
	d = [center[0], center[1]+height, center[2]]
	return [a,b,c,d]

#--------------------------------------------------------------

def sierpinski(verts, seed, num):
	data = []
	for n in range(num):
		vert = pickpnt(verts)
		seed = halfstep(vert, seed)
		data.append(seed)
	return data

#--------------------------------------------------------------

# sort pnts by y value, then distort x value with sine function
def distort(data):
	data.sort(key = lambda x: x[1])
	for vert in data:
		amp = random.uniform(0.5,1.5)
		vert[0] += amp*math.sin(vert[1])
	return data

import sierpinski as sier
from sierpinski_arnold import getBounds
from random import uniform

def sierpinski_rman(data_path, num):

#generate tetrahedron

	center = [0,0,0]
	size = 2
	tetra = sier.tetrahedron(center,size)
	seed = [0,0.5,0]
	verts = sier.sierpinski(tetra, seed, num)
	distorted = sier.distort(verts)

	#------------------------------------------
	#write rib

	bounds = getBounds(distorted)
	width = 0.01

	#Open a data file (rib)
	f = open(data_path, 'w')

	#dynamic data: bounding box, positional, color, then constant width
	f.write('#bbox: {} {} {} {} {} {} \n'.format(*bounds))
	f.write('Points "P" [\n')
	for pnt in distorted:
		f.write('  %f %f %f\n' % (pnt[0],pnt[1],pnt[2]))
	f.write(']\n"constantwidth"[%f]\n' % (width))

	#Add color primvar
	f.write('"varying color cs" [\n')
	for pnt in distorted:
		r = uniform(0.0, 1.0)
		g = uniform(0.0, 1.0)
		b = uniform(0.0, 1.0)
		f.write('  %f %f %f\n' % (r,g,b))
	f.write(']\n')
	f.close()

if __name__ == '__main__':
	sierpinski_rman('destination/test.rib', 10000)

import time
import sierpinski as sier

def getBounds(verts):
	minx = min(verts, key=lambda x: x[0])
	miny = min(verts, key=lambda x: x[1])
	minz = min(verts, key=lambda x: x[2])
	maxx = max(verts, key=lambda x: x[0])
	maxy = max(verts, key=lambda x: x[1])
	maxz = max(verts, key=lambda x: x[2])

	bounds = [minx[0], miny[1], minz[2], maxx[0], maxy[1], maxz[2]]
	return bounds

def sierpinski_arnold(data_path, num):
	center = [0,0,0]
	size = 2
	tetra = sier.tetrahedron(center,size)
	seed = [0,0.5,0]
	data = sier.sierpinski(tetra, seed, num)
	verts = sier.distort(data)

	#------------------------------------------

	now = time.strftime("%Y %m %d %H:%M")
	num_pnts = len(verts)
	bounds = getBounds(verts)
	radii = 0.01
	rgb = [1,1,1]


	#Open a data file (arnold)
	f = open(data_path, 'w')
	f.write('### exported: %s\n' %(now))
	f.write('### user: jkengl20\n')
	f.write('### bounds: {} {} {} {} {} {} \n'.format(*bounds))

	#header junk
	f.write('### fps: 24.000000\n### render_layer: defaultRenderLayer\n### frame: 1.000000\npoints\n{\n name sierpinskiShape1\n visibility 255\n receive_shadows on\n self_shadows on\n matrix\n 1 0 0 0 \n 0 1 0 0 \n 0 0 1 0 \n 0 0 0 1 \n opaque on \n matte off \n mode "disk"\n min_pixel_width 0\n step_size 0\n declare rgbPP uniform RGB\n id 2669626448\n')

	#dynamic data: positional, radii, then color
	f.write(' points %i 1 VECTOR\n' % (num_pnts))
	for pnt in verts:
		f.write('  %f %f %f\n' % (pnt[0],pnt[1],pnt[2]))
	f.write(' radius %i 1 FLOAT\n' % (num_pnts))
	for pnt in verts:
		f.write('  %f\n' % (radii))
	f.write(' rgbPP %i 1 RGB\n' % (num_pnts))
	for pnt in verts:
		f.write('  %f %f %f\n' % (rgb[0],rgb[1],rgb[2]))
	f.write('} \n')
	f.close()

if __name__ == '__main__':
	sierpinski_arnold('destination/test.ass', 10000)

import random
import math
import sys

def halfstep(p1, p2):
	# turn items to floats
	fp1 = []
	fp2 = []
	for n in p1:
		fp1.append(float(n))
	for n in p2:
		fp2.append(float(n))
	# average each point at each coord
	x = (fp1[0] + fp2[0])/2
	y = (fp1[1] + fp2[1])/2
	z = (fp1[2] + fp2[2])/2
	return [x,y,z]

#-------------------------------------------------------------

def pickpnt(pnts):

return random.choice(pnts)

#-------------------------------------------------------------

def tetrahedron(center, size):

	#build tetrahedron around center based on size
	#lines of symmetry are size*sqrt(3)/2 for equilateral triangle
	#A pnt [center+(size*sqrt(3)/3), 0, center]
	#B pnt [center-(size*sqrt(3)/6), 0, center-(size/2)]
	#C pnt [center-(size*sqrt(3)/6), 0, center+(size/2)]
	#D pnt [0, size, 0]
	height = (size*math.sqrt(3))/2
	constant = (size*math.sqrt(3))/3
	a = [center[0]+constant, center[1], center[2]]
	b = [center[0]-(constant/2), center[1], center[2]-(size/2)]
	c = [center[0]-(constant/2), center[1], center[2]+(size/2)]
	d = [center[0], center[1]+height, center[2]]
	return [a,b,c,d]

#--------------------------------------------------------------

def sierpinski(verts, seed, num):
	data = []
	for n in range(num):
		vert = pickpnt(verts)
		seed = halfstep(vert, seed)
		data.append(seed)
	return data

#--------------------------------------------------------------

# sort pnts by y value, then distort x value with sine function
def distort(data, freq, amp):
	data.sort(key = lambda x: x[1])
	for vert in data:
		vert[0] += amp*math.sin(freq*vert[1])
	return data

#--------------------------------------------------------------

#set up inputs from UI and write .rib by calling on functions above
args = sys.stdin.readline()
if args:
	arg = args.split()
	pixels = float(arg[0])
	num = int(arg[1])
	center = list(arg[2])
	size = float(arg[3])
	seed = list(arg[4])
	radius = float(arg[5])
	freq = float(arg[6])
	amp = float(arg[7])

	#generate sierpinski
	tetra = tetrahedron(center,size)
	verts = sierpinski(tetra,seed,num)
	distorted = distort(verts,freq,amp)

	#dynamic data: positional, color, then constant radius
	print('Points "P" [\n')
	for pnt in distorted:
		print('  %f %f %f\n' % (pnt[0],pnt[1],pnt[2]))
	print(']\n"constantwidth"[%f]\n' % (radius))

	#Add color primvar
	print('"varying color cs" [\n')
	for pnt in distorted:
		r = uniform(0.0, 1.0)
		g = uniform(0.0, 1.0)
		b = uniform(0.0, 1.0)
		print('  %f %f %f\n' % (r,g,b))
	print(']\n')

	sys.stdout.write('\377')
	sys.stdout.flush()

	# wait for the next set of inputs
	args = sys.stdin.readline()

rman "-version 1" {
Declare param {int sierpinski_num} {
	label "Number of Points"
	subtype slider
	range {10 10000000 1000}
	description "No description."
	}
Declare param {color sierpinski_center} {
	label "Center"
	description "Center point of the tetrahedron"
	}
Declare param {float sierpinski_size} {
	label "Size"
	subtype slider
	range {0.005 20.0}
	description "Length of tetrahedron sides"
	}
Declare param {color sierpinski_seed} {
	label "Seed Point"
	description "Starting seed point for sierpinski"
	}
Declare param {float sierpinski_radius} {
	label "Radius"
	subtype slider
	range {0.005 20.0}
	description "Per point radius, constant"
	}
Declare param {float sierpinski_freq} {
	label "Frequency"
	subtype slider
	range {0 100 1}
	description "Frequency of sine distortion"
	}
Declare param {float sierpinski_amp} {
	label "Amplitude"
	subtype slider
	range {0 50 1}
	description "Amplitude of sine distortion"
	}
# The Collection and NodeOptions blocks enable a Pre-Shape MEL script
# to be assigned to "RenderMan Controls->Geometric Settings" panel.
Collection sierpinski_OptionalGeometricSettings {
	param sierpinski_num {
		default 10
		state optional
		}
	param sierpinski_center {
		default {0 0 0}
		state optional
		}
	param sierpinski_size {
		default 0.005
		state optional
		}
	param sierpinski_seed {
		default {0 0.5 0}
		state optional
		}
	param sierpinski_radius {
		default 0.005
		state optional
		}
	param sierpinski_freq {
		default 5
		state optional
		}
	param sierpinski_amp {
		default 1
		state optional
		}
	}

NodeOptions {kGeometric kParticle} {
   	reference Collection optionalGeometricSettings
   	reference Collection sierpinski_OptionalGeometricSettings
	}

}

// Generated by Cutter v7.8.1
// Cutter software by Malcolm Kesson (all rights reserved).
global proc sierpinskiUI()
{
string $selected[] = `ls -sl`;
int $i;

for($i = 0; $i < size($selected); $i++ ) {
	string $shp[] = `listRelatives -shapes $selected[$i]`;

// To add the UI implemented by this proc to the "Geometric
	// Settings" panel use the following mel commands,
	//	    select rmanSettings;
	//	    sierpinskiUI;
	// where "rmanSettings" might be rmanSettings1, rmanSettings2 etc.
	if(`nodeType $selected[$i]` == "RenderMan")
		$shp[0] = $selected[$i];

string $shapeName = $shp[0];
	string $attr = `rmanGetAttrName "preShapeScript"`;

// "Connect" to the mel script that calls
	// Pixar's custom Ri mel procedures.
	rmanAddAttr $shapeName $attr "sierpinskiRI";

	$attr = `rmanGetAttrName "sierpinski_num"`;
	rmanAddAttr $shapeName $attr "10000";

$attr = `rmanGetAttrName "sierpinski_center"`;
	rmanAddAttr $shapeName $attr "{0 0 0}";

$attr = `rmanGetAttrName "sierpinski_size"`;
	rmanAddAttr $shapeName $attr "2";

$attr = `rmanGetAttrName "sierpinski_seed"`;
	rmanAddAttr $shapeName $attr "{0 0.5 0}";

$attr = `rmanGetAttrName "sierpinski_radius"`;
	rmanAddAttr $shapeName $attr "0.01";

	$attr = `rmanGetAttrName "sierpinski_freq"`;
	rmanAddAttr $shapeName $attr "5";

	$attr = `rmanGetAttrName "sierpinski_amp"`;
	rmanAddAttr $shapeName $attr "1";

}
}

global proc sierpinskiRI() {
// Get the name of the shape node
string $shapeNode = `rman ctxGetObject`;
string $parents[] = `listRelatives -parent $shapeNode`;
string $tformNode = $parents[0];

// The node may hava a number in its name that we can use
// to set the random number generator
int	$nodeNumber = `match "[0-9]+" $shapeNode`;
if($nodeNumber != "") {
	seed(int($nodeNumber));
	}
// Bounding box...
float $bb_width =  `getAttr ($shapeNode + ".boundingBoxSizeX")`;
float $bb_height = `getAttr ($shapeNode + ".boundingBoxSizeY")`;
float $bb_depth =  `getAttr ($shapeNode + ".boundingBoxSizeZ")`;

string $attr;
$attr = `rmanGetAttrName "sierpinski_num"`;
$attr = `rmanGetFullSharedGeometricAttrName $shapeNode $attr`;
int $sierpinski_num = `getAttr $attr`;

$attr = `rmanGetAttrName "sierpinski_center"`;
$attr = `rmanGetFullSharedGeometricAttrName $shapeNode $attr`;
vector $sierpinski_center = `getAttr $attr`;

$attr = `rmanGetAttrName "sierpinski_size"`;
$attr = `rmanGetFullSharedGeometricAttrName $shapeNode $attr`;
float $sierpinski_size = `getAttr $attr`;

$attr = `rmanGetAttrName "sierpinski_seed"`;
$attr = `rmanGetFullSharedGeometricAttrName $shapeNode $attr`;
vector $sierpinski_seed = `getAttr $attr`;

$attr = `rmanGetAttrName "sierpinski_radius"`;
$attr = `rmanGetFullSharedGeometricAttrName $shapeNode $attr`;
float $sierpinski_radius = `getAttr $attr`;

$attr = `rmanGetAttrName "sierpinski_freq"`;
$attr = `rmanGetFullSharedGeometricAttrName $shapeNode $attr`;
float $sierpinski_freq = `getAttr $attr`;

$attr = `rmanGetAttrName "sierpinski_amp"`;
$attr = `rmanGetFullSharedGeometricAttrName $shapeNode $attr`;
float $sierpinski_amp = `getAttr $attr`;

// Use of Pixar's custom RenderMan Studio procedures begins here.
string $cmd;
if(`about -win64`)
	$cmd = "\nProcedural \"RunProgram\" [\"python C:/Users/jmken/Documents/maya/scripts/sierpinski_helper.py\" ";
else
	$cmd = "\nProcedural \"RunProgram\" [\"C:/Users/jmken/Documents/maya/scripts/sierpinski_helper.py\" ";
$cmd += "\" " + $sierpinski_num;
$cmd += " " + $sierpinski_center;
$cmd += " " + $sierpinski_size;
$cmd += " " + $sierpinski_seed;
$cmd += " " + $sierpinski_radius;
$cmd += " " + $sierpinski_freq;
$cmd += " " + $sierpinski_amp + "\"] [-100 100 -100 100 -100 100]";
print($cmd + "\n");
RiArchiveRecord("structure", $cmd);

// Make the proxy object inactive
RiAttribute "visibility" "int camera" 0;
RiAttribute "visibility" "int indirect" 0;
RiAttribute "visibility" "int transmission" 0;
}

//__________________________________________________________
// A utility to create a rib path for an archive to be saved
// in the project directories "data" folder.
global proc string getArchivePath(string $nodename) {
	string $projpath = `workspace -q -rootDirectory`;
	string $datapath = $projpath + "data/";
	string $scenename = `file -q -sceneName -shortName`;
	int $frame = `currentTime -q`;
	string $fstr = "0" + $frame;
	if($frame < 10)
		$fstr = "000" + $frame;
	else if($frame < 100)
		$fstr = "00" + $frame;
	$ribpath = $datapath + $nodename + "." + $fstr + ".rib";
	return $ribpath;
	}










